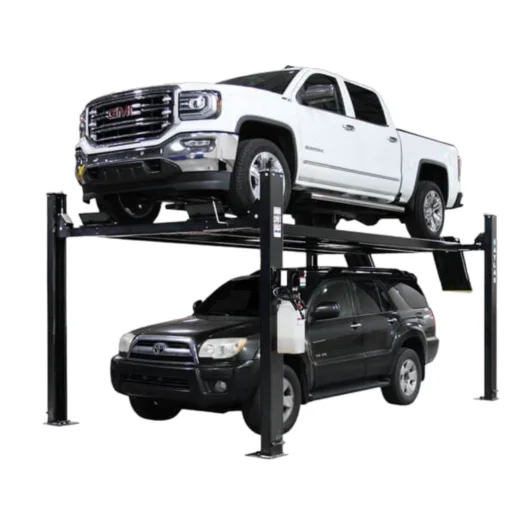

The Atlas APEX9 ALI certified 4 post lift is a heavy duty hobbyist and commercial grade lift and is a true 9000 LB lift. The APEX9 is extra long and allows the lift to handle some of the longest wheel base vehicles out there. The APEX9 is also extra wide allowing even Diesel Duallys to be driven onto the runways. The APEX9 also features extra lift height so everything from Smart Cars to a Dually can be parked both below and on the runways.
The Atlas APEX9 is even heavier than the Garage PRO9000 making it one of the heaviest portable hobbyist lifts on the market. The APEX9 has many of the features of the Atlas Garage PRO9000 lift including free plastic drip trays, a free steel jack tray, and a caster kit with polyurethane wheels. The caster kit can be installed or removed in just a matter of minutes making the lift portable and allowing it to move between bays or even outside. Finally, the Atlas APEX9 features “tracks” between the runways to allow the use of a rolling bridge jack (such as the Atlas RJ6BK) on the lift.

ALI Certified Lift
9,000 lb. Capacity
Free Standing/Portable Design
Heavy Duty
Extra Tall, Extra Wide & Extra Long
Powder Coat Finish
Diamond Plated Runways
Single Point Lock Release
Lock Ladder Design
Double Lock Safety System
Steel Approach Ramps Included
Steel Jack Tray Included
Four Plastic Drip Trays Included
Two Wheel Chocks Included
Caster Kit with Polyurethane wheels Available
Anchor Bolts Optional (Sold Separately)
Perfect for Storage or Working on Vehicles
110volt Electric Operation (Requires 30amp Breaker)
Shipping Weight: 2,975 lbs.
5 yr Structural – 2 yr Hydraulic Warranty

Atlas Apex 9 Specifications

Capacity
9,000 lb.

Lifting Height To Top of Runway
86″ (7′ 2″)

Clearance Under Runways
81 1/4″ (6′ 9 1/4″)

Height of Columns
99″ (8′ 3″)

Overall Width (Without Motor or Casters)
121 7/8″ (10′ 1 7/8″)

Overall Width (With Motor)
133 7/8″ (11′ 1 7/8″)

Overall Length without Approach Ramps (Including Lock Release Bar)
204″ (17″)

Overall Length with Approach Ramps
227 1/2″ (18′ 11 1/2″)

Approach Ramps
31 1/2″

Runway Width
20 1/8″

Runway Rail Width
2″

Runway Length
196 1/2″ (16′ 4 1/2″)

Runway Thickness
4 3/4″

Width Between Runways
38 7/8″ (3′ 2 7/8″)

Width Between Runway Rails
34 3/4″ (2′ 10 3/4″)

Outside Runway to Outside Runway
79″ (6′ 7″)

Clearance Between Columns
108 1/8″ (9′ 1/8″)

Length Between Columns
184 1/4″ (15′ 4 1/4″)

Maximum Wheel Base
184″ (15′ 4″)

Drive Thru (Outside of tire to outside of tire)
98 5/8″ (8′ 2 5/8″)

Motor/Electrical Requirement
110 Volt, 30 AMP BREAKER REQUIRED

Shipping Weight
2,975 lb.
