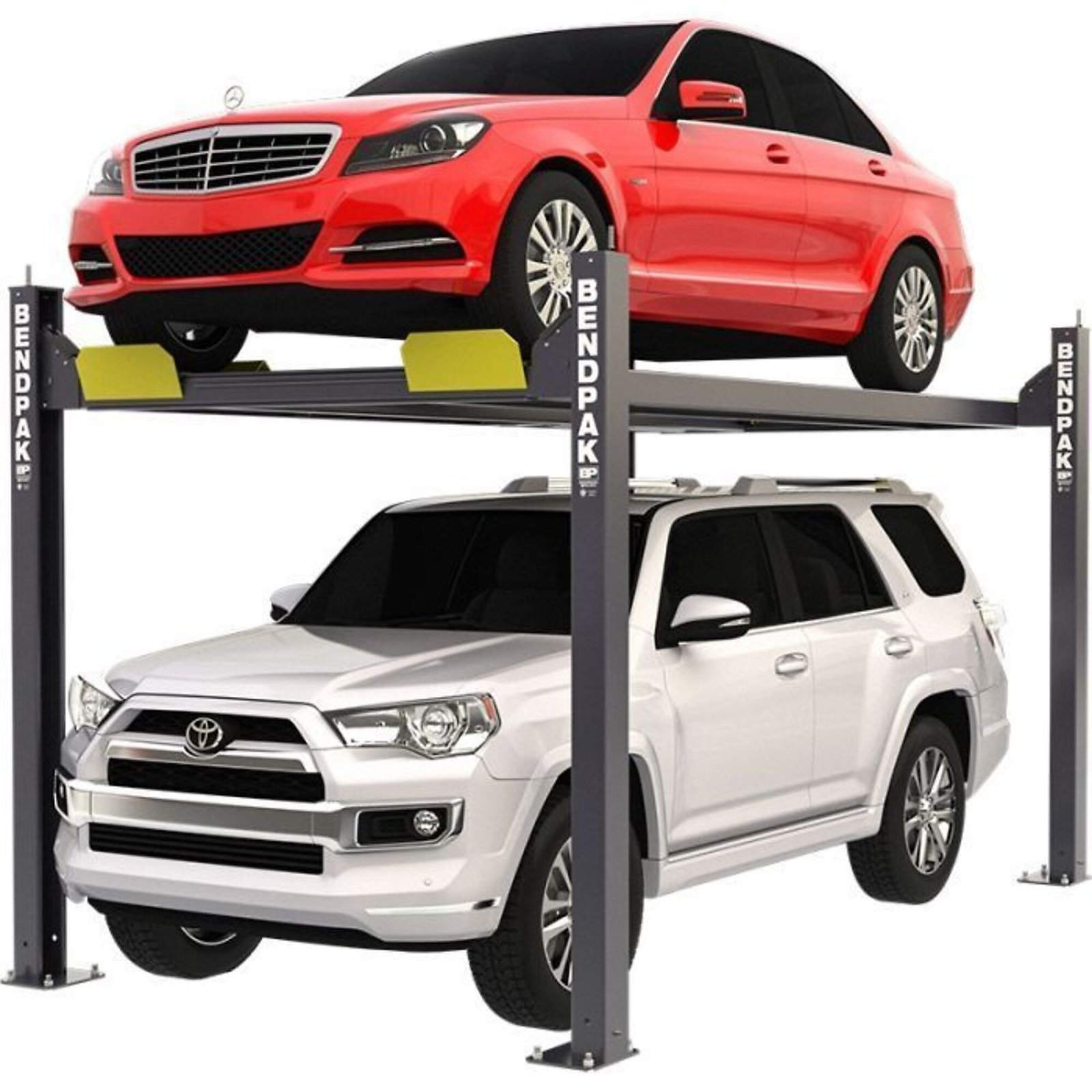

BendPak’s HD-7W is the standard-width car lift model in the HD-7 series. With a 110.25in. overall width and a spacious 100.25in. spread between the columns, there’s plenty of room to park most cars and trucks in the lower position. This leaves ample space for you to maneuver. Dependable, Light-Duty 7,000-lb. Capacity Four-Post Lift The 7,000-lb. capacity HD-7W is ideal for shops that want the versatility to park sports cars, sedans, light-duty trucks and SUVs in the same structure. There’s even enough side clearance to accommodate larger truck mirrors. Even so, this lift is only slightly larger than a typical parking space. Due to its reduced footprint, as well as its ability to house a variety of vehicle types in a low-ceiling garage, the HD-7W is an extremely attractive parking and maintenance solution for both homeowners and professional technicians. Dependable design The HD-7W features four stainless steel wire ropes, as well as a lone hydraulic cylinder that remains tucked underneath the runway. This powerful cylinder ensures you get a super-durable design that requires minimal maintenance over time. Dual-hub wire rope sheaves Larger wire rope sheaves prevent undue wear-and-tear on the four-post lift’s axles, wire rope and even the sheaves themselves. Dual-hub and oversized sheaves provide a safer product that lasts longer and costs less to maintain. The larger the sheave, the less friction against the components, so we make every single sheave larger than necessary. Typically speaking, the bigger the lift, the bigger the sheave!
Features + Benefits
HD-7 series. With a 110.25″ overall width and a spacious 100.25″ spread between the columns

Wide drive-thru with tall lifting height and short runways

Forklift Required

Single hydraulic cylinder mounted underneath runway

Features heavy-duty 3/8″ aircraft cable

Multi-position safety locks in each column

Adjustable lock ladders add versatility

Push button pneumatic safety release

Electric / hydraulic power system
Attribute

Specification
item#
53516
Brand
BendPak
Manufacture’s Warranty
12 months parts/12months labor
Ship Weight
1756.0 LB
Capacity
7,000 lb
Max. Rise
7 ft
Horsepower
3 HP
Attribute

Specification
Motor Phase
Single-phase
Volts
220
Lock Spacing
4 in
Locking Position (qty.)
17
Time of Full Rise
60 sec.
Drive-Thru Clearance
86.5 in
Material
Steel
