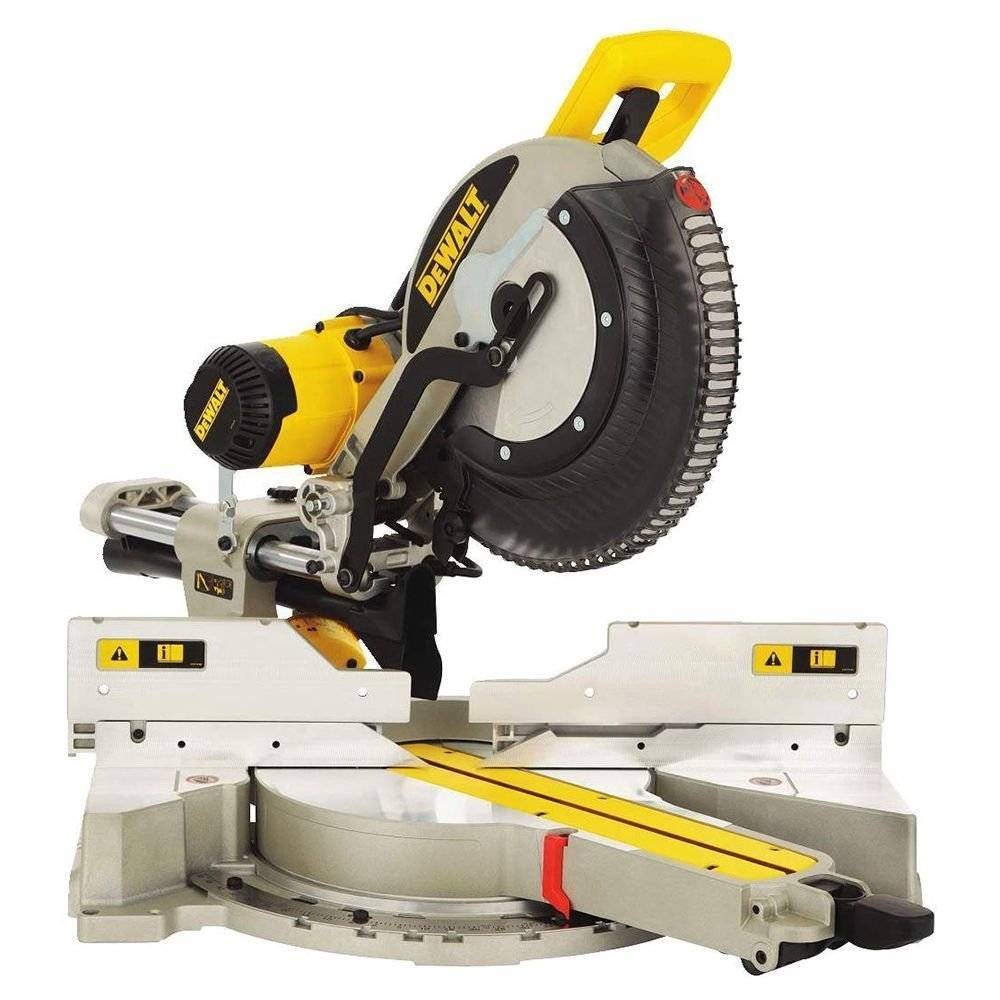

The 12″ double bevel sliding compound miter saw has a 15 Amp motor delivers extended power and durability and integrated XPS crosscut positioning system for adjustment-free, accurate cut line indication for better accuracy and visibility. Tall sliding fences support 7-1/2″ of nested crown and 6-3/4″ of base molding vertically against the fence while easily sliding out of the way for bevel cuts. Exclusive back fence design cuts up to 2×14 dimensional lumber at 90 degree increased miter capacity of 60 degree (r) and 50 degree (l) features durable stainless-steel miter detent plate with cam lock for repeatable accuracy with easy adjustments.
Manufacturer

DeWalt
Condition

New
UPC

85911231602
Features
1100 Watt motor designed for heavy duty applications

Super-efficient dust collection system captures over 75% of dust generated

Adjustable stainless-steel miter detent plate with 10 positive stops improves productivity and ensures cutting accuracy

Oversized bevel scale makes bevel angle adjustments accurate and easy

Compact, lightweight design (58 lbs) allows for easy transport and storage

Cam lock miter handle with detent override deliver quick and accurate miter angles

Dual horizontal steel rails with innovative clamping mechanism and linear ball bearings deliver an accurate, durable and compact saw

Innovative gearbox and belt-drive design increases vertical cutting capacity
Includes
Blade Wrench

Dust Bag

Vertical Material Clamp

12″ Carbide Blade
Electric Brake

No
Variable speed

Yes
Application

Cutting Stair Tread Up to 14″ Cross Cut (with Back Fence), Cutting Crown and Cutting Base Molding Vertically Nested Against Fence, Cutting 2x Material and Precision Cuts for Woodworking
Type

Miter Saw
Corded or Cordless

Corded
Accessories Included

Yes
Dust Collection

Yes
Water Resistant

Yes
LED Light

Yes
Bevel Angle

49 Deg /49 Deg
Uncertainty K1 (Vibration)

1.5 m/s2
Diameter

12″
Motor Amperage

15 Amp
No Load Speed (RPM)

3,800 RPM
Crown Molding Capacity

7 1/2″
Base Molding Capacity

6 3/4″
Cutting Capacity at 90 Degree

2″ x 14″
Cutting Capacity at 45 Degree

2″ x 10″
Miter Angle

60 Deg (Right) and 50 Deg (Left)
Wattage

1675 W
Worklight

3.3 V
Power Supply (Input)

120–240 V AC; 50 and 60 Hz
Power Supply (Output)

5 V DC; 0.45 A
Operating Temperature

14 Deg F to 104 Deg F
Storage Temperature

-22 Deg F to 176 Deg F
Cord Length

6 ft
Height

19.5″
Width

23″
Depth

32.33″
Weight

56 lbs
Warranty

3 Years
