*Concrete thickness must be at least 5.9” (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.

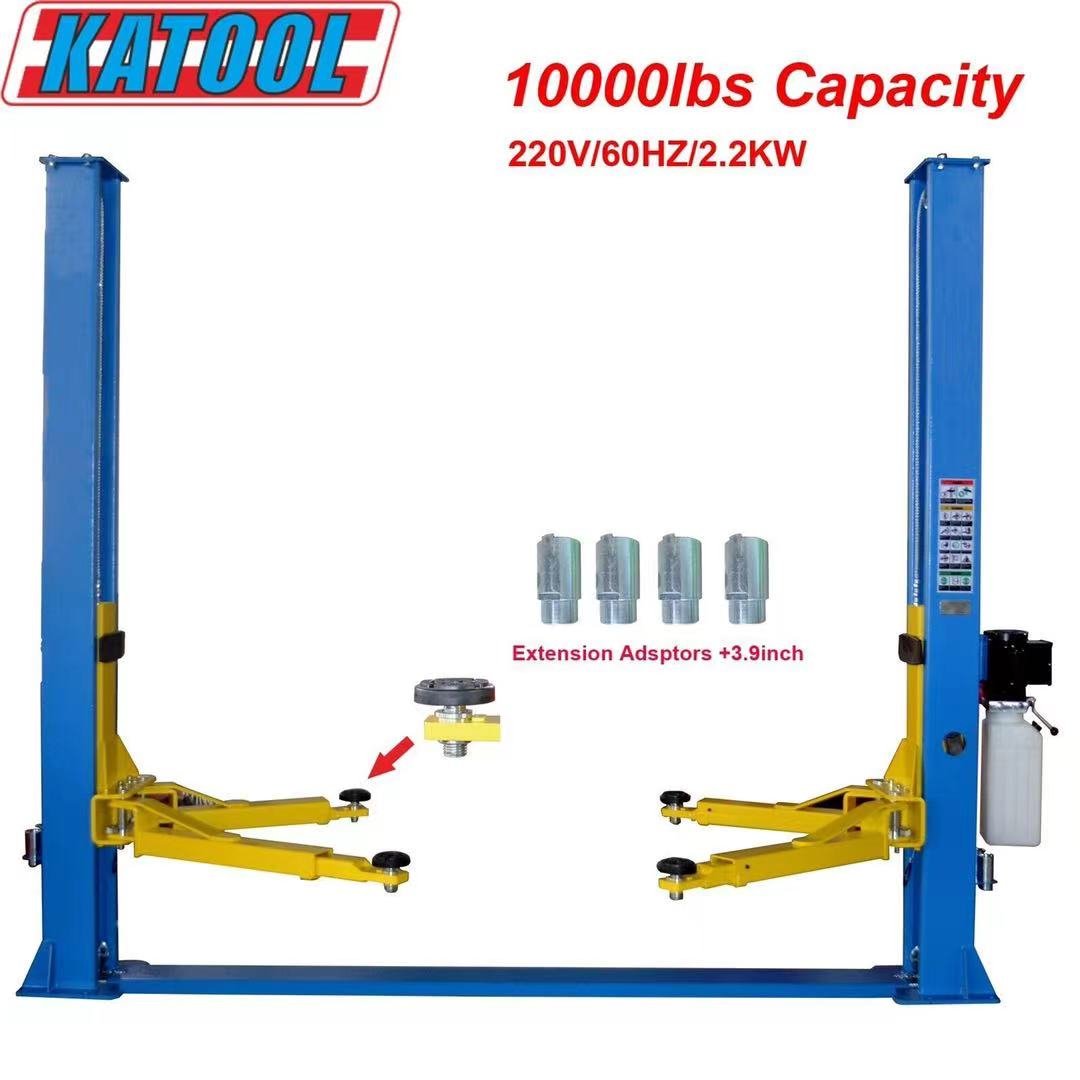

Lifting Capacity

10000lbs.(4500KG)

Max. Lifting Height

70.8″/1800mm

Min. Height

3.9″/100mm

Height Overall

110.9″/2818mm

Width Overall

140.4″/3565mm

Outside Column

124.8″/3170mm

Inside Column

110.2″/2800mm

Dirve-Thru Clearance

98.4″/2500mm

Front Arm Reach(Min)

29.5″/750mm(2 stages)

Front Arm Reach (Max)

46″/1170mm(2 stages)

Rear Arm Reach(Min)

35.4″/900mm(2 stages)

Rear Arm Reach(Max)

58.2″/1480mm(2 stages)

Motor

220VAC/60HZ/1PH/2.2KW

Net Weight

570KG
