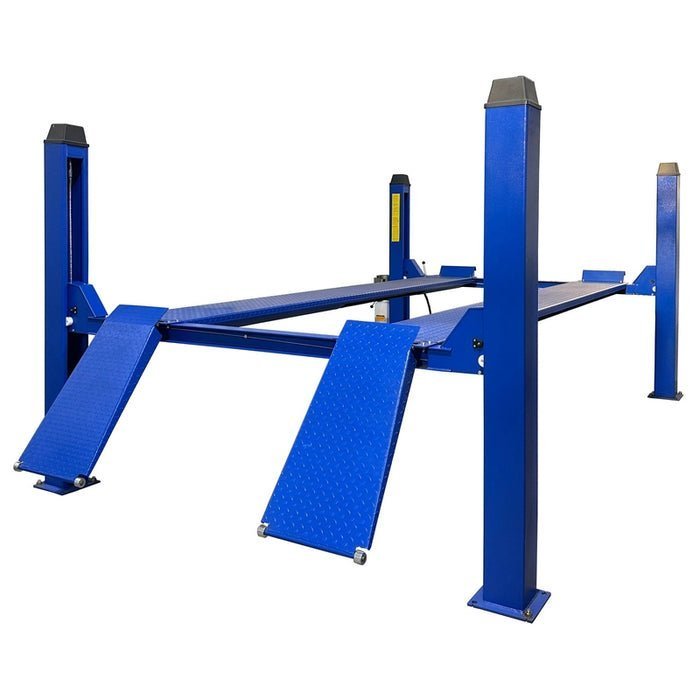

Tuxedo 12,000 lb Four Post Lift – Cable Driven
–
*Jack sold separately
Cable driven four post lift provides 12,000 lb. lifting capacity. No power beam; Cylinder stowed under single piece diamond plate track. Simple, lever release system and redundant safety locks.
Features
–
12,000 lbs Capacity
Cable Driven
176 max wheelbase
Single Point Manual Lock Release
Adjustable Locking Positions
Slack Cable Safety
No Overhead Obstructions
Powder Coat Finish
Specifications
–
Lift Model
FP12K-K
Capacity
12,000 lbs.
Overall Length w/Ramp
232-1/2″
Overall Width(Without Power Unit)
123″
Overall Width (With Power Unit)
134″
Overall Height
84″
Max Rise Height
67-1/2″
Min Height
7″
Width Between Posts
105″
Length Between Posts
177″
Width Between Runways
36-1/2″
Width Of Runways
19″
Max Wheelbase
167″
Ramp Length
35″
Max. Clearance Under Runway
63-1/4″
Drive-Thru Clearance
87-1/2″
Base Plate
11″ X 11″
Power Requirement
220V – 20 Amp – 1PH
Ship Weight
2,255 lbs.
Min Bay Size
15″ x 23″
